BNC Video Audio Extender Over CAT5e CAT6 CAT7 Cable, CAT5e CAT6 BNC Video Audio Extender, BNC Audio Video Extender Over Ethernet, Audio Video BNC Extender Over Ethernet, BNC to RJ45 Extender.

Applications

Features

* Perfect and cost-effective video signal extension solution for transmitting BNC type video and/or audio signal over long distance using low-costvCAT-5, CAT-5e or CAT-6 Ethernet cable.
* Supports simultaneous connection with 2 separate BNC or RCA video devices for transmission at the same time.
* Great extender kit for audio signal too.
* Also extending single video feed with one mono RCA audio together or solely for extending stereo Left/Right channels or two separate mono audio channels depending on the installation.
* Maximum signal transmission distance up to 250 feet.
* Ethernet cables are easier to install and more flexible than other coaxial or BNC cables.
* Twisted pair network cabling provides added protection against outside interference and increases transmission distances.
* Original video picture quality will be retained all the way during the extension/transmission.
* No signal loss and no degradation after the long cable run.
* Passive circuitry with self bus-powered so no external power supply needed for the operation in both transmitter unit and receiver unit.
* Fully plug and play.

Specifications

* Video Input Connector: BNC/RCA male x 2
* Video Out Connector: BNC/RCA male x 2
* RJ45 Connector: 2 ( 1 for transmitter and 1 for receiver unit)
* Max Transmission Distance: 250 feet
* Bandwidth: 10 Hz to 50 kHz +/-3 dB
* Operating Temperature: -10C ~ +50C
* Environment Humidity: 0 ~ 95%
* Wire Type: UTP Category 5, 5e, or 6
* Operating Temperature: -10°C to 70°C
* Dimension: 0.5"(L)x0.5"(W) x1"(D)

Package Content

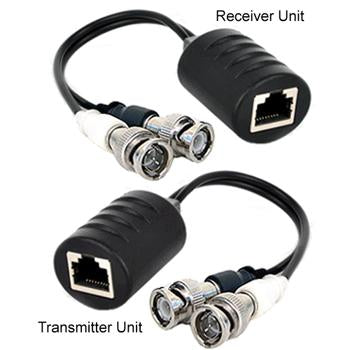

* A/V transmitter module x 1
* A/V receiver module x 1
