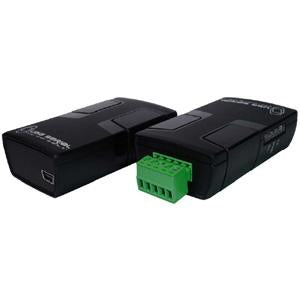

485 Adapter, Terminal Block FTDI Chipset

California Prop 65

PVC-Coated Products or PVC-Coated Wires and Cables

Warning: Warning: This product can expose you to chemicals (including but not limited to Styrene, BPA, DIISONONYL PHTHALATE, DINP, etc), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information about California Proposition 65, visit California's Government information page at www.P65Warnings.ca.gov

The USB to serial interface adapter offers an easy way to connect a Terminal Block serial device to a USB port. All configuration and electrical interface selections are handled through...

$28.40

Availability: 10000 In Stock

Code: 150552

Unit Weight: 0.53 lb

Description
Reviews (0)

The USB to serial interface adapter offers an easy way to connect a Terminal Block serial device to a USB port. All configuration and electrical interface selections are handled through the driver, eliminating the need to open the enclosure to set jumpers or switches. The serial port is software configurable for RS-232, RS-422, and RS-485 with the electrical interface settings maintained locally, allowing the host computer to be repaired or upgraded without reconfiguring the serial port. Additionally, the adapter can be configured at one computer and deployed to other computers.

* FTDI chipset
* Fully Compliant with USB specification 1.1 and 2.0
* RS-232/RS-422/RS-485 (Echo mode/Bias resister/Terminal resister) set up by Windows application program
* Bus powered, no external power required
* High data rate up to 230 kbps (RS-232) ~ 3 M Baud Rate (RS-422 or RS-485)
* Compatible with Windows 98SE/ME/2000/XP/Vista/7/8 or higher, Windows Server 2003/2008/2008R2/2012/2012R2, Win CE and Mac OS 8.6, Linux 1.5.0 or higher

Kit contents
1 -- USB to RS232/422.485 adapter w/terminal block
1 -- 2Ft USB A male to Mini male cable
1 -- Mini CD Driver
